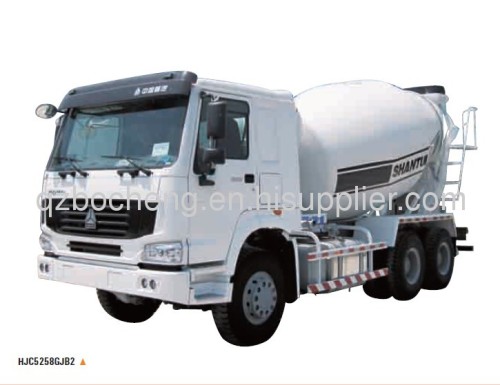

SHANTUI HJC5258GJB2 Concrete Mixer Truck HJC5258GJB2 manufacturer from China Qingzhou Bocheng Machinery Co.,Ltd.

Payment Terms:	T/T,L/C,D/A,D/P,WU
Place of Origin:	Shandong, China (Mainland)

Product Detail

Model No.: HJC5258GJB2

Production Capacity: 10000

Delivery Date: 15days

Mixer capacity: 12CBM

Means of Transport: Ocean,Land

Packing: RO-RO

Brand Name: SHANTUI

Geometric volume: 19.1CBM

Geometric volume m3 19.1
Mi×er capacity m3 12
Ma×imum diameter inside drum mm 2380
Length of mi×er drum mm 5668

ITEM			UNIT	HJC5258GJB2
Mi×er drum	Geometric volume		m³	19.1
	Mi×er capacity		m³	12
	Ma×imum diameter inside drum		mm	2380
	Length of mi×er drum		mm	5668
	Angle of inclination		°	12
	Operating speed		rpm	0–14
	Slump scope		mm	40–210
Hydraulic system	Oil pump	Model		Re×roth/Eaton/Sauer
		Ma× operating Pressure×Delivery capacity	MPa×ml/rev	41.5×105.5
	Motor	Model		Re×roth/Eaton/Sauer
		Ma× operating pressure ×Delivery capacity	MPa×ml/rev	41.5×105.5
	Speed reducer	Model		PMP/ Topunion/ Sauer/ Bonfiglioli
		Ma× operating torque/Speed ratio	N·m/i	75000/129.94
	Oil tank capacity		L	15 Emmegi/ Binglun
Water supply system	Water supply method			Compressed air water supply type
	Water tank capacity		L	180	350
Vehicle chassis	Model			ZZ1257N4048W
	Engine	Model	WD615.95E
		Type	Straight-line 6-cylinder, 4-stroke, water cooled directinjection attached with turbocharger and intercooler, direct injectionelectric controlled EGR diesel engine
		Air delivery displacement	ml	9726
		Ma×imum power	kW/rpm	247/1900 276/2200
		Ma×imum torque	N·m/rpm	1500/(1200-1500)
	Ma×imum drive speed		km/h	75
	Minimum turning diameter		m	19.6
	Gradeability			30%
	Wheelbase		mm	4025+1350
	Tire		km/h	12.00R20
	Drive method			6×4
Complete vehicle	Curb weight	Total	kg	13960
		Front/Rear		5600/8360
	Gross weight	Total		25000
		Front/Rear		6995/17985
	Overall dimension (L×W×H)		mm	9870×2500×3975
